What is a measured survey?

Accurate and reliable measured surveys backed by industry expertise

Get a quote

What is a Measured Survey? — Red Laser, London & UK

A measured survey is a precise dimensional record of an existing building or site, captured using 3D laser scanning or traditional survey instruments. Measured surveys — also called measurement surveys — produce CAD drawings, 3D models and point cloud data used by architects, developers and engineers for design, planning and construction. Red Laser delivers measured surveys across London and the UK — used for planning, design and construction decisions.

A measured survey is a precise dimensional record of an existing building or site — captured using 3D laser scanning or traditional survey instruments and delivered as CAD drawings, 3D models or point cloud data. The term covers a family of survey types rather than a single service. A measured building survey records the interior and exterior of a building. A topographic survey records a site’s physical features. A heritage survey documents a listed building using non-contact methods. What they share is the same underlying purpose: replacing assumptions about existing conditions with accurate, verified data. The RICS governs the standards for measured surveys of land, buildings and utilities in the UK. A measured survey carried out to RICS specification gives architects, developers and engineers a dataset they can build design decisions from with confidence.

What types of measured survey are there?

The right survey depends on what your project involves — a building, a site, or both.

Measured building survey

The most commonly commissioned measured survey. Captures the interior and exterior dimensions of an existing building — floor plans, elevations, sections, ceiling plans and structural elements.
Used by architects for refurbishment and planning applications, by developers for due diligence, and by engineers for coordination. Delivered as CAD drawings, a Revit model or point cloud data, depending on the project requirement.

Topographic
survey

Records the physical features of a site — ground levels, contours, boundaries, drainage, vegetation and existing structures. Used for development feasibility, planning applications and infrastructure design.
Often commissioned alongside a measured building survey when a project involves both a building and external land.

Drone survey

Aerial data capture using photogrammetric drones for areas where ground-based access is restricted — roofs, large external façades and complex multi-building sites.
Often combined with a measured building survey for the interior, giving architects and developers a complete building record from a single site visit.

Heritage survey

A non-contact measured record of listed buildings, churches and conservation area structures using laser scanning and photogrammetry. Produces the same dimensional accuracy as a measured building survey without physical intrusion to the building fabric. Required for conservation-led design, restoration planning and listed building consent applications.

Area measurement

Produces GIA, NIA, GEA and NLA floor area calculations to the RICS Code of Measuring Practice — the standard required for property valuation, lease agreements and planning submissions.
Can be delivered as a standalone service or as part of a full measured building survey.

As-built survey

A measured record of a building as constructed, rather than as designed. Used when drawings do not reflect what was actually built — during refurbishment, at handover, or when original design documentation is unavailable.
The process is the same as a measured building survey; the purpose is specifically to record the completed construction.

When do you need a measured survey?

You need a measured survey whenever a project requires accurate existing conditions data — typically before design, refurbishment, planning application or building acquisition begins.

The most common situations:

Capturing detailed utility mapping data, our team provides comprehensive insights into underground utilities to support your project

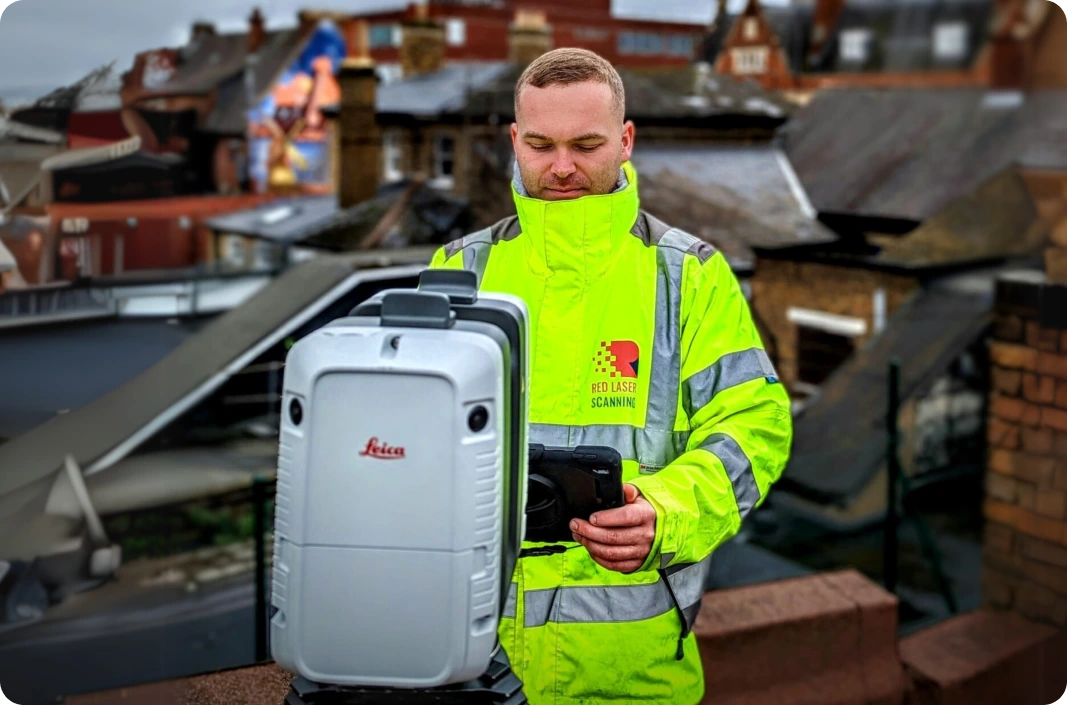

A measured survey in progress using 3D laser scanning to capture accurate building data for planning, design and refurbishment projects
  • Before a planning application
    Whether you're proposing an extension, a change of use or a new development on an existing site, planning authorities require accurate existing drawings. A measured building survey provides those drawings for an existing building. A topographic survey provides them for the land.
  • At the start of a refurbishment or fit-out
    Designing a refurbishment from inaccurate or outdated drawings is one of the most common causes of on-site rework. A measured survey at the outset gives the architect verified dimensions — floor-to-floor heights, wall thicknesses, opening positions — before any design decisions are made.
  • During pre-acquisition due diligence
    Before committing to a property acquisition, developers need verified GIA and NIA area calculations and accurate existing conditions data. A measured survey provides both, often within a few days of instructing.
  • When creating a BIM model of an existing building
    A measured building survey is the starting point for any scan-to-BIM workflow. The point cloud captured during the survey is the raw data from which a Revit model is built.
  • For a listed building or conservation area structure.
    Heritage surveys and listed building consent applications require a non-contact measured record. Standard tape measure surveys are not accepted for conservation purposes.

If your project requires accurate existing drawings, Red Laser issues a detailed measured survey quote within 24 hours

Request a quote

What does a measured survey produce?

A measured survey produces accurate dimensional data — typically delivered as 2D CAD drawings, a 3D Revit model, or a point cloud, depending on what the project requires.

  • 2D CAD drawings
    The most frequently requested output. Produced from the point cloud data captured during the survey and delivered in DWG, DXF and PDF formats. A full measured building survey produces floor plans, reflected ceiling plans, internal and external elevations, cross-sections and a roof plan — at the drawing scale and Level of Detail agreed before the survey begins.
  • 3D models
    Produced directly from the point cloud and used for BIM coordination, design development, clash detection and client presentations. A Revit model — delivered as .RVT or .IFC — is the most commonly requested 3D output. SketchUp and AutoCAD 3D models are also available depending on the project workflow.
  • Point cloud data
    The raw output of the 3D laser scan. A point cloud is a dense dataset of millions of measured spatial coordinates capturing every surface of the building to ±1mm accuracy. It contains more information than any drawing or model derived from it — which means it can be revisited at any time if additional outputs are needed without returning to site. Delivered in E57, RCP, LAS, PTS and other standard formats.
Capturing detailed utility mapping data, our team provides comprehensive insights into underground utilities to support your project

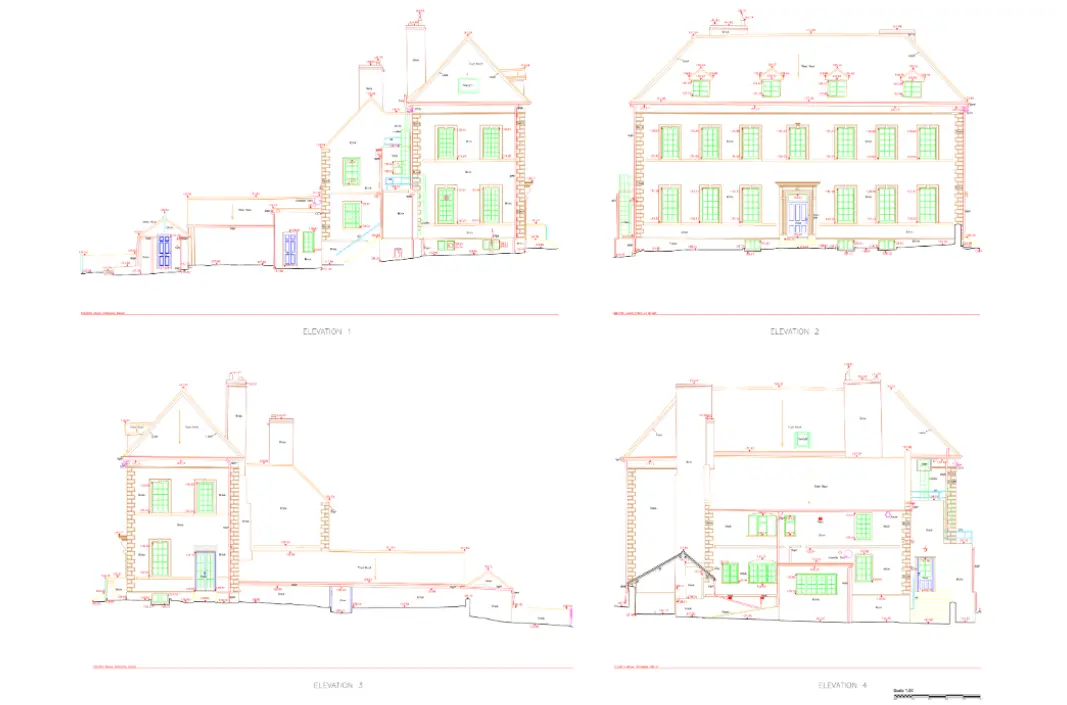

Measured survey output in the form of 2D CAD drawings, including elevations and sections

A measured survey example: an architect commissioning a measured building survey of a Victorian office building for a planning application receives AutoCAD floor plans at 1:50, external elevations at 1:50, and the registered point cloud in E57 format — all produced from a single site visit.

Capturing detailed utility mapping data, our team provides comprehensive insights into underground utilities to support your project

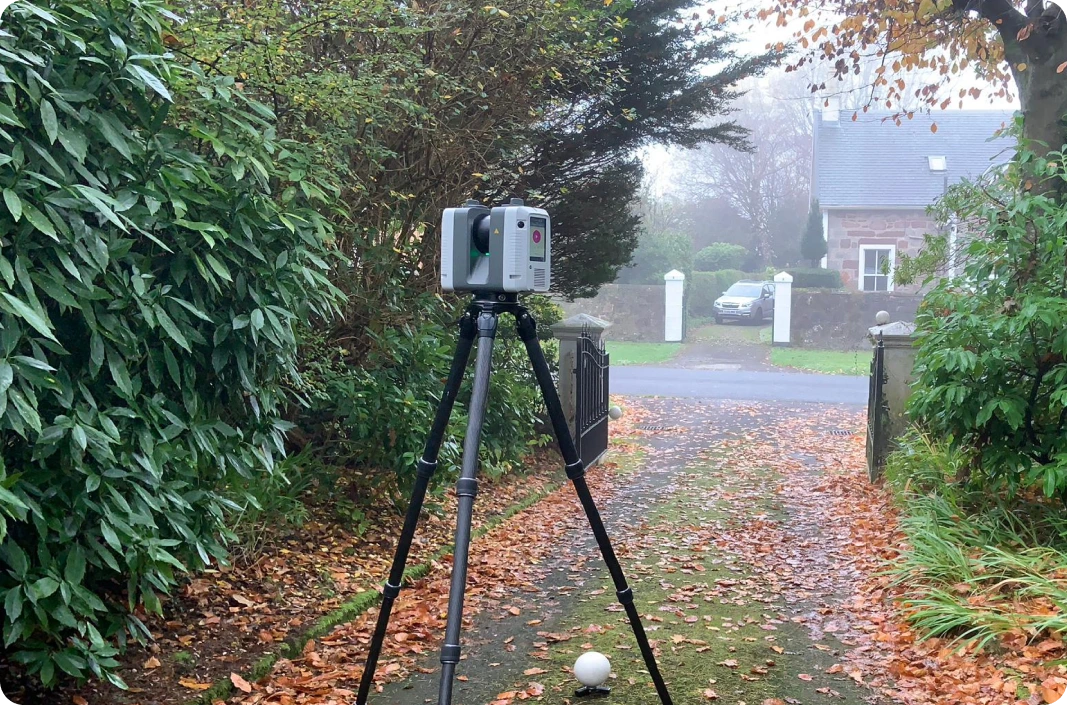

Our team performs a measured survey of a house, ensuring accurate dimensions and layouts for effective refurbishments and structural changes

How accurate is a measured survey?

A measured survey carried out using Leica RTC360 3D laser scanners is accurate to ±1mm — the standard Red Laser works to on every project. That level of accuracy means the floor plan you receive reflects the building as it actually exists, not as it was assumed or approximated. For architects designing to tight tolerances, developers calculating lettable area for valuation, or engineers coordinating with structural elements, ±1mm accuracy is not a technical detail — it is what prevents costly errors downstream.

Traditional tape measure surveys introduce human error at every measurement point. Laser scanning eliminates that variable by capturing millions of data points simultaneously from a fixed position, creating a complete digital record of the space in a single site visit.

Who carries out a measured survey?

Measured surveys are carried out by specialist surveying companies using 3D laser scanners, total stations and photogrammetric equipment. Not all providers work to the same standards — the RICS Measured Survey specification sets the benchmark for accuracy, Level of Detail and deliverable quality in the UK.

Red Laser is a London-based measured survey company delivering measured building surveys, topographic surveys and heritage surveys across the UK. Every survey is processed in-house — no outsourcing — and deliverables are checked against the project brief by a second surveyor before issue. When you contact Red Laser, everyone you speak to has a professional background in surveying, construction or engineering.

Get a quote
Delivering expert underground utility and utility mapping surveys

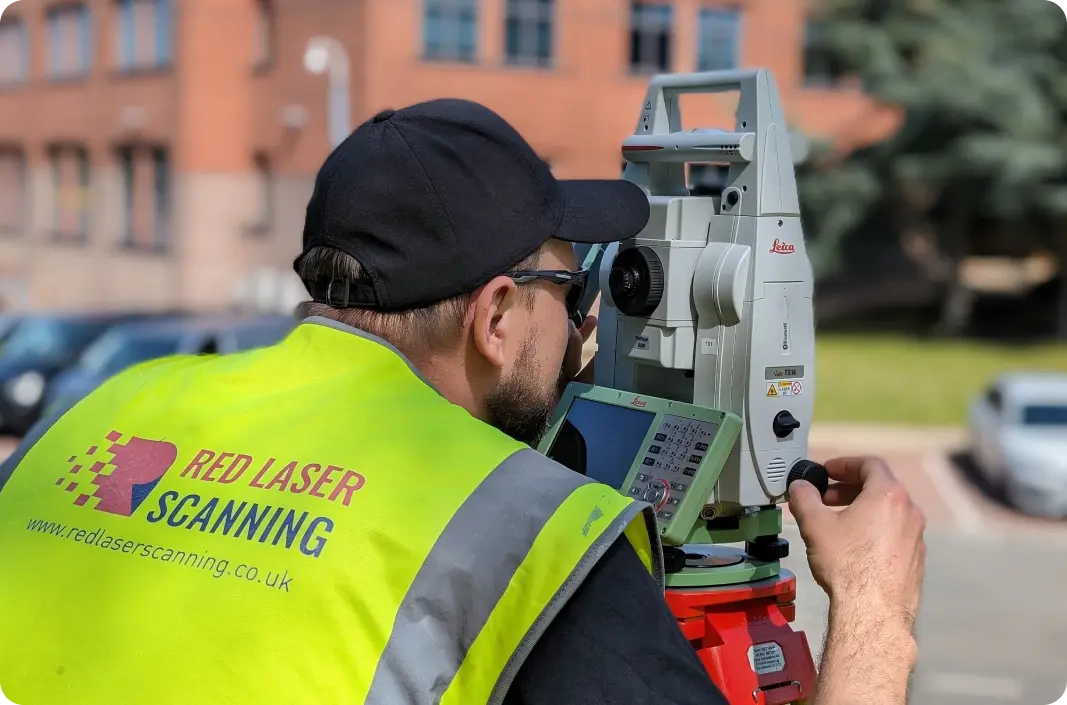

A professional surveyor using specialist equipment to carry out a measured survey in line with industry standards for accurate data capture

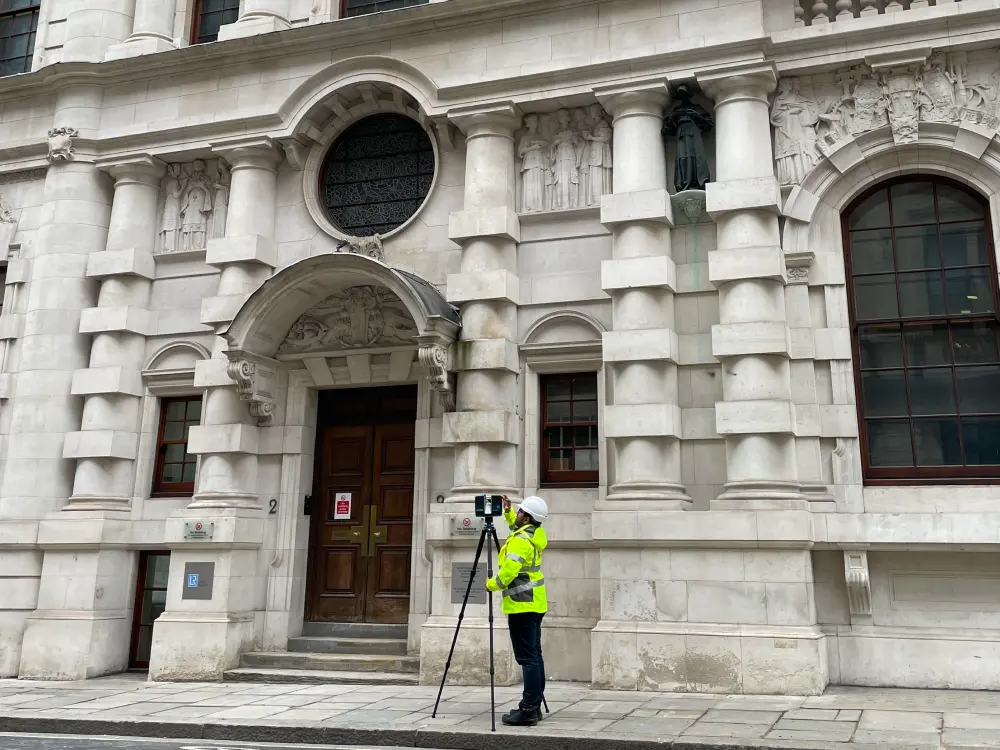

Surveyor carrying out a measured survey of a heritage building using a 3D laser scanner

How much does a measured survey cost?

Measured survey cost depends on building size, number of floors, Level of Detail required, deliverables needed and access conditions. Red Laser provides a detailed, itemised quote within 24 hours of your enquiry — covering every element of scope so there are no surprises after the survey is complete.

The main factors that affect cost:

  • Building size and number of floors — More scan positions, more processing time.
  • Level of Detail required — A LOD 1 massing model costs less than a fully detailed LOD 3 Revit model.
  • Deliverables required — A floor plan–only package costs less than a full set including RCPs, sections and a 3D model.
  • Access conditions — Occupied buildings, restricted hours or specialist access affect site programme.

Straightforward pricing. No hidden fees. For a detailed breakdown, see our measured building survey cost guide.

Frequently asked questions

Find out more

For a full overview of Red Laser’s measured survey services — and help identifying which survey your project needs — see our measured survey services page.

If you already know you need a measured building survey, our measured building survey page covers the full scope, deliverables, process and how to get a quote.
