Large-Scale Industrial Survey for Redevelopment and Setting Out
Get a quote

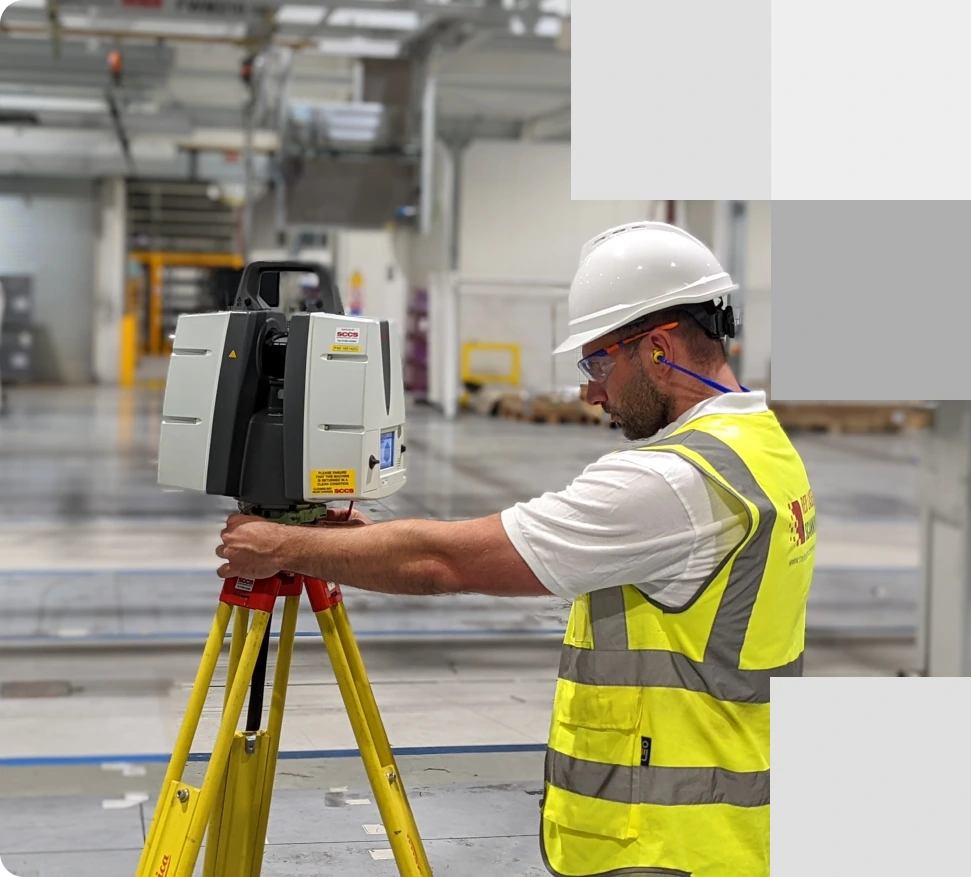

Surveyor on site using an advanced laser scanner to conduct a setting out survey of a production line design, ensuring precise measurements with a tolerance of 2mm for accurate alignment and optimal efficiency
Location: Coleshill, Birmingham
Deliverables:
Setting out of production line design to a tolerance of 2mm.
Project description:
Our measured building surveyors complete the setting out to accurately position an automated production line design into the factory workspace. Using the latest 3D laser scanning technology, we were able to gather precise information in order to complete the accurate positioning of the production line design setting out the same production line navigation points to a tolerance of 2mm. Our professionals did this without disturbing or interrupting the production line.
Our measured building company is flexible and reliable to your needs, that is why we conducted the survey during the weekend due to no production and the prevention of any vibrations which may cause inaccuracy and affect the data. Our surveyors required PPE for all site work, including safety shoes, a high-vis vest and a hardhat.
Setting out services from Red Laser
Setting out services will guarantee the reduction of errors from measurements and alignments for all projects. With as-built drawings and documentation in place, the next step to determine the setting out may include:
- Building locations and foundations
- Pile positions, pile caps and contiguous walls
- Drainage systems, steel positions and bolt holes
- Roads and highways
- Glazing positions, shoes, mullion and transom lines
- Concrete shutter lines, slab extents
Our setting out engineers are skilled in coordinating points to be set out, with the reference and verification of 2D drawings. No matter the scale and size of the site, our experts use a range of setting out equipment when marking accurate and reliable measurements:
- GPS technology
- Total stations
- Levelling instruments
We use the layout drawings to set out against the location and indicate the required measurements.
Skilled setting out engineers performing a measured building survey to capture precise data, ensuring accurate alignment and planning for construction, renovation, and redevelopment projects
Why choose Red Laser for your large-scale projects?
Our professional measured building survey team is always attentive to delivering the best for your projects. We are able to adapt to your needs and hours through our flexible service while efficiently producing the desired deliverables within a swift turnaround. If you are looking for a measured building survey or setting out service, ensure to contact our professional team to receive optimised services with no disruption to your business.
